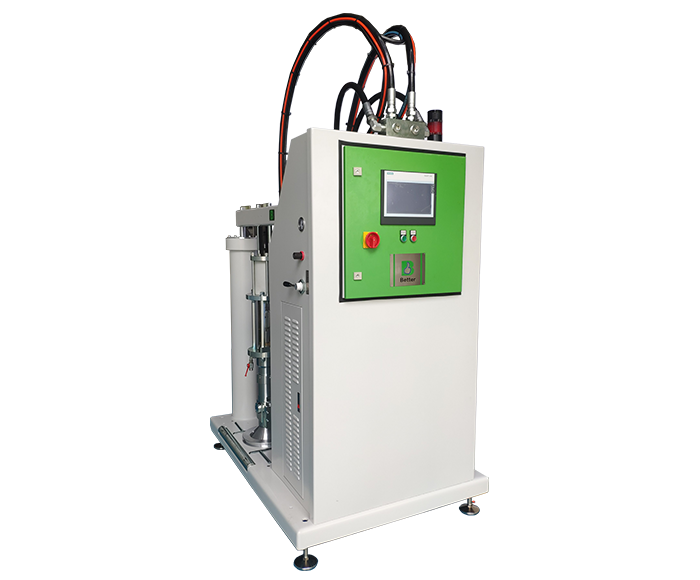

Liquid silicone feeder, also known as silicone feeder, is a feeding device for liquid silicone that is professionally used in liquid silicone injection molding machines.

The silicone rubber metering and mixing device is a high-quality supply system. The hydraulic drive system is driven by the center of the material pump, which avoids the lateral force caused by the mechanical coupling, which causes increased wear.

The utility model is generally used to transport liquid silicone AB glue in a ratio of 1:1 on a liquid silicone injection molding machine.

Device control is carried out using on-off contact pressure gauges. It allows the operator to know at a glance whether the machine is working properly from a distance. Using these switch contacts ensures that material shortages or overvoltages are avoided.

When the liquid silicone feeder receives the start signal. It is convenient for metering to be carried out in an automatic manner, and the material pressure regulating device keeps the pressure constant during each metering cycle. In order to ensure accurate feeding of the mold, this is especially important when the material supply requirements are very low.

When producing multi-color silicone products, liquid pigments can be conveyed at the same time, and when producing colored silicone rubber, 0.3% to .04% can be automatically metered through the feeding device. Simple, quick and clean color changes can be done by changing the color feed pump. The color matching device is directly connected to the mixing module at the front end of the feeder.

The liquid silicon feeder can be used with vertical/horizontal injection machines, and is suitable for the production of various common and special products or molds. Suitable for silicone products. Such as baby products, medical supplies, diving supplies and other products. Color paste pumps can be selected on demand, and products of various colors can be produced.

Silicone rubber feeder silicone rubber metering and compounding equipment is a high-quality hydraulic transmission system, a powerful hydraulic transmission system driven by the center, which avoids the lateral force generated during the mechanical coupling process, thereby increasing wear.

The feeder has received a start signal. Metering is performed in automatic mode, and the material pressure regulator keeps the pressure constant during each metering cycle. In order to ensure accurate feeding of the mold, this is especially important when the material supply requirements are very low.

Optional liquid silicone feeder:

Corrosion-resistant materials are hard metal ball valves and speed steel piston rods. The 200L raw material barrel can be transformed into a 20L material barrel. The mixing section, the color material and the metering device can be cooled. Central color supply station.

Pressure sensor incorporated into the material (only if equipped with a cooling mixing section).

Using the Liquid Silicon Dispenser:

Liquid silica gel needs to be made with a liquid silica gel machine, which is mainly used for babies, medical supplies and electronic products (keys), as well as A/B mixed directly into the mold, and then into the drying oven for baking (the operation method for making silicone products), Liquid silicone machines also have silicone liquid rollers, trademark glue, etc., depending on which product you use.

Ordinary silicone is vulcanized during use, but can also be used as filler material such as electrically insulating fillers, or as silicone filler fluids used in breast augmentation surgery, or as an additive in cosmetics.

Product features of liquid silicone:

Liquid silicone has excellent transparency, tear resistance, elasticity, yellowing resistance, thermal stability, water resistance, air permeability, heat resistance, aging resistance, good weather resistance, moderate viscosity, easy operation, strong product transparency, and can see the filling in the mold. Whether the material has defects such as bubbles, the shrinkage of the liquid silicone line is less than or equal to 0.1%, and the size of the imitation product is accurate.
